Type-tested systems and planning software for increased safety in planning and operation, increased cost-effectiveness and maximum reliability.

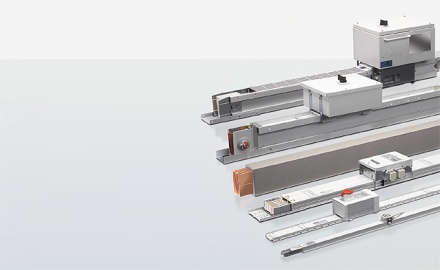

A total of six different busbartrunking systems offer everything required for modern power transportation and distribution matched to your individual requirements. With the busbartrunking systems SIVACON 8PS, you will not only benefit from a transparent and flexible solution for controlling the increasingly complex area of building management, but also considerably improve the efficiency of industrial applications by ensuring a safe and reliable power supply.

The Busbars with the Suitable Design for Lighting Systems and Small Consumers in Shopping Malls, Logistic Warehouses and Buildings of All Kinds.

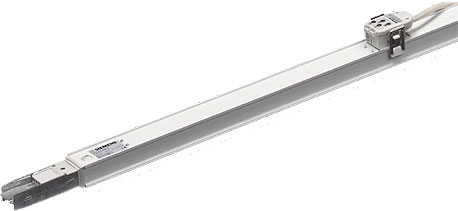

The CD-K busbartrunking system is made of sheet steel and is therefore only slightly susceptible to electromagnetic interference.

The CD-K system is characterised by maximum flexibility and its particular ease of mounting and disassembly in case of changed installation conditions. The plug-in quick connections are equipped to considerably facilitate installation. Since emergency and main power supply are combined in a single system, the busbar run is optimally utilised.

3- and 5-pole tap-off plugs of the same width make configuration and the use of AC and DC consumers easier. Changes or expansions to the power distribution are possible quickly and easily without downtime using tap-off plugs that are pluggable when energised.

The CD-K busbartrunking system can be connected to the GAMMA building management systems in order to realize energy-efficient solutions in lighting control.

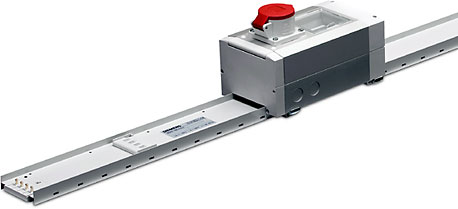

The BD01 system is designed for applications from 40 A to 160 A. It is employed in trade and industry enterprises to safely supply small consumers with power or realise the infeed of the CD-K system. Planning is especially simple and it ensures a flexible power supply. In addition to the pre-wired tap-off units, which can also be individually equipped with components, numerous add-on devices such as protective devices or combinations with SCHUKO or CEE socket outlets are available.

The operating personnel are afforded a high degree of protection by the guided mounting of the tap-off units. The tap-off points are only automatically opened upon the tap-off units' connection. As soon as these units are removed, the tapoff points close automatically.

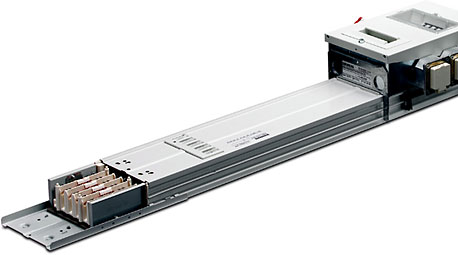

The BD2 system is particularly suited for applications from 160 A to 1,250 A with increased safety requirements. The tested fire barrier and functional endurance in case of fire ensure a high degree of safety. The compact system not only stands out for its safe operational behaviour, but also for its minimum space requirements. It can also be used for the infeed of the smaller CD-K and BD01 systems.

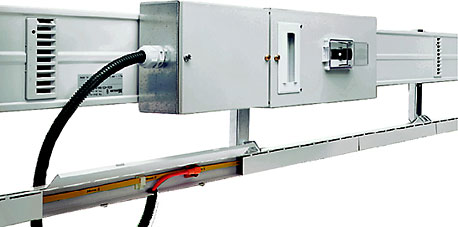

The communication capable BD2 busbartrunking system with its load detection, remote monitoring and switching and its lighting control increases system availability and ensures greater transparency in your operation.

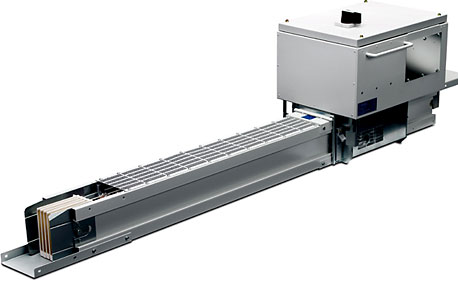

The LD system offering rapid and safe mounting covers the current range from 1,100 A to 5,000 A. It transports and distributes the power between the transformer, main power distribution board and sub-distribution boards on production sites with high power requirements, e.g. for welding lines in the automotive industry.

A separate PE busbar increases the conductor cross-section and ensures a low impedance in the event of faults. It facilitates longer busbar runs as well as an assured response of the protective device, also with long current paths. In addition, tap-off units with circuit breakers up to 1250 Aincrease the availability of power distribution.

The high short-circuit strength and compact design open up many fields of application. The epoxy coating of the conductors offer additional protection against water in the ventilated system (IP34) (sprinkler-suitable).

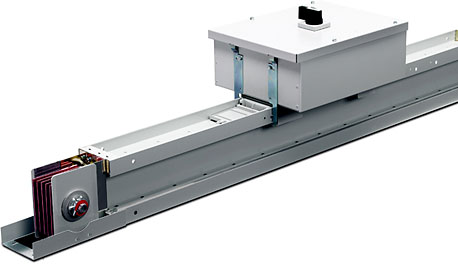

Thanks to its sandwich design, the LX system is characterised by low voltage drop when transporting high currents.

The LX system is particularly suited to applications from 800 A to 6,300 A in which large amounts of power have to be flexibly transported over long distances, for example in multi-story buildings.

With a high degree of protection of up to IP55, the system can also be used in heavily contaminated or damp environments. The aluminum enclosure gives rise to a low fire load and high corrosion resistance. Furthermore, the LX system also demonstrates its strength with sensitive consumers thanks to its conductor configuration with double N conductors and clean earth.

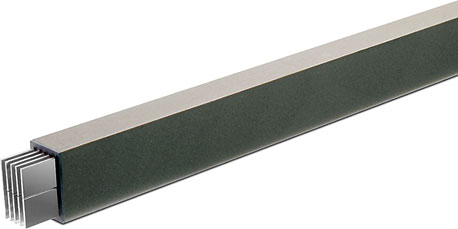

Thanks to its enclosure made of epoxy cast resin with a high degree of protection IP68 and high short-circuit strength, the LR system provides reliable power transportation even under the most adverse ambient conditions. It is impervious to environmental factors such as air humidity and corrosive or salty atmospheres.

The robust system can be laid flat, upright, vertically or horizontally as required in applications from 400 A to 6,150 A. With only minimum space requirements, it can be optimally adjusted to the construction conditions with angles, connectors and T-pieces for change of direction. The LR system is also perfectly suited for outdoor applications.

The LR system can be simply and quickly fitted using the bolt-type terminal block. It is consistent and can be easily combined with the LX and LD systems for indoor applications.
